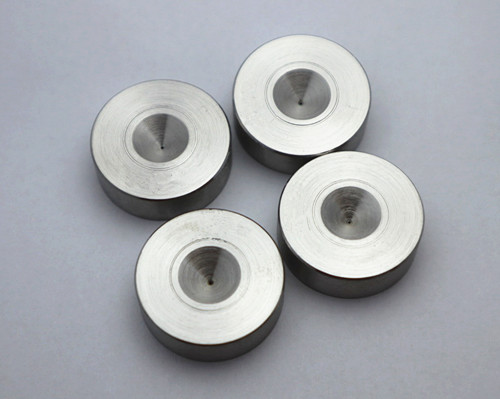

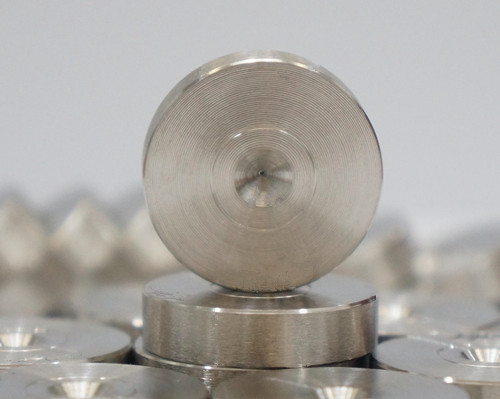

Mono Diamond Dies Mono Diamond Dies

Mono Diamond Dies

  • Diameter : 0.03mm~1.0 mm (0.001181''~0.03937")
  • Wires: Stainless steel,cooper,aluminum
  • Raw Material: No crack, no impurity
  • Product description:Mono diamond wire drawing dies for ferrous and nonferrous wires.
  • INQUIRY

Mono Diamond

Inner Geometry

Inner geometry of mono diamond dies have“Entrance,approaching,reduction,bearing length and exit part”.
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.

e. Back Relief: Prevent the final wire surface from scratching.

f.  Exit: Wire exiting.

Diameter

Diameter (in inch)

Diameter  (in mm)

Tolerance(mm)

Roundness(mm)

≤0.0039

≤0.100

0.001

0.0005

0.00398~0.0079

0.101~0.200

0.001

0.0005

0.00791~0.0197

0.201~0.500

0.002

0.0010

0.01972~0.0394

0.501~1.000

0.003

0.0015

Appliable Wires

Many kinds of non ferrous and ferrous metal, such as cooper,aluminum,gold,silver,molybdenum,nickel,wolfram,alloy wire,stainless steel wire and so on.

Features of Mono Diamond Dies

20 years' experience in manufacturing Mono Diamond Dies.

Advanced manufacturing and inspecting machines.

Imported natural diamond stone with high purity, no crack and defects.

Imported sintering powder with high reinforcement.

Long life time,high working efficiency.

Superior wire surface.

100% inspected by machine,high accuracy,conformity and stability.
