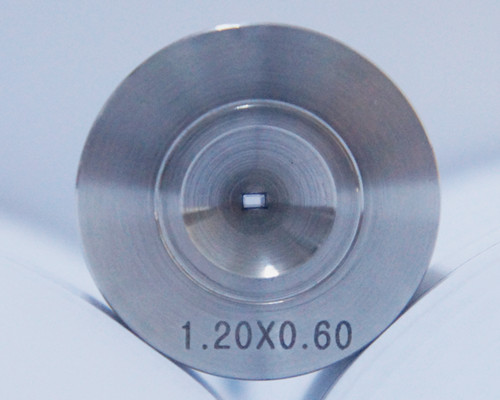

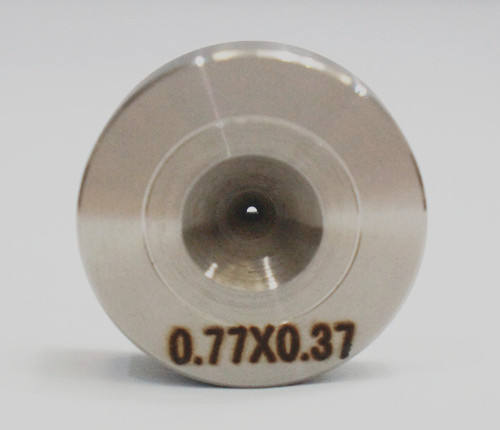

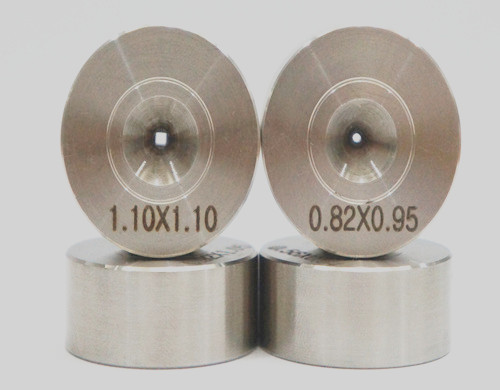

PCD Shaped Dies
- Grain Size :3um,5um,10um,25um,50um
- Shape:Square,rectangular, trianglular,hexagon,oval,half round and irregular shapes.
- Minimum Size Tolerance: ±0.001mm
- Minimum Radius Corner: 0.05mm
- Product description：PCD shaped dies
Shape
Square,rectangular,trianglular,hexagon,oval ,half round and other irregular shapes.
Customized shapes are also available.
Appliable Wires
Gold,silver,copper,steel,aluminum,tin-coated、copper-clad steel,stainless steel wires and so on.
Minimum Diameter
Square die: 0.20mm×0.20mm
Rectangular die: 0.08mm×0.30mm
Triangular die: 0.2mmx0.5mm
Half round die: 0.25mm×0.5mm
Tolerance
Minimum Radius Corner: 0.05mm
Minimum Size Tolerance: ±0.001mm
Features
Long life time.
Strictly selected PCD material.
Even texture, high abrasive resistance.
Predictable wire surface and accuracy.
